| # 1 Barn built in 1995 | |
|
|

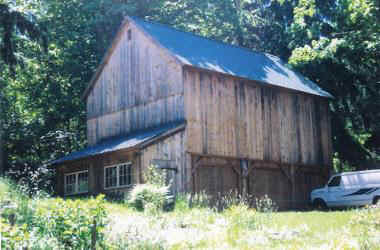

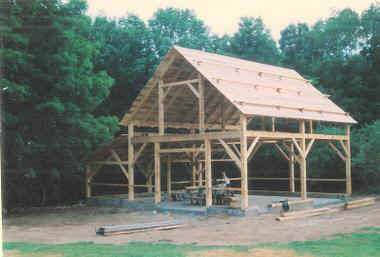

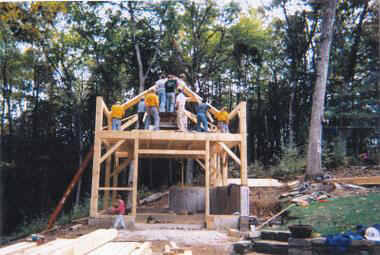

| This barn is a 24' by 30' 1 1/2 story barn. | This was the first Timberframe barn I designed and built on my own. |
| # 2 Barn / shop built in 1996 | |
|
|

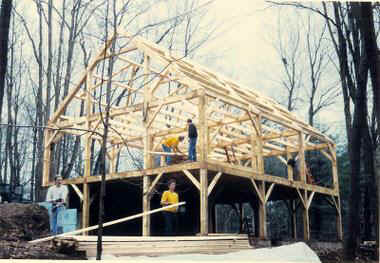

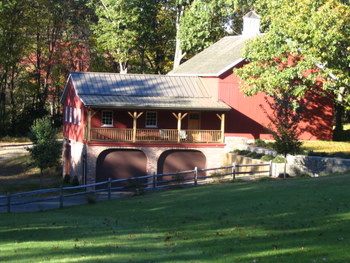

| This barn is a 24' by 36' 2 1/2 story bank barn. | |
| # 4 Barn built in 1997 | |
|
|

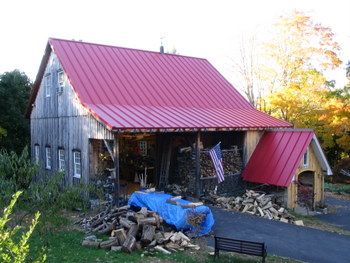

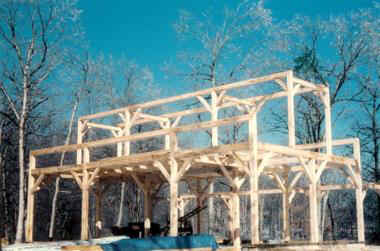

| This is a 24' by 42' 1 1/2 story barn with a 8' by 42' shed, part of which is open for fire wood storage. | |
| # 6 Barn / addition built in 1998 | |
|
|

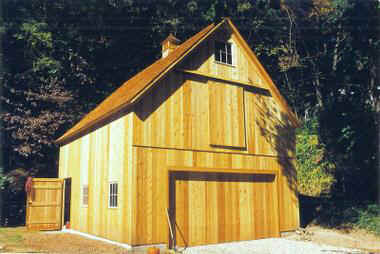

| This is a 26' by 32' 1 1/2 story carriage barn / addition used as a garage and additional living space | |
| # 9 Barn / shop built in 2000 | |
|
|
| This is a 30' by 36' 2 1/2 story barn and work shop. | |
| # 15 Barn built in 2002 | |
|
|
| This is a 24' by 30' 1 1/2 story barn with a 12' by 30' shed on one side, with a metal roof. | |
| # 16 Barn / garage built in 2002 | |
|
|
| This is 20' by 22' garage with a 6' by 12' garden shed on the side, with all wood cedar roof and siding. | |
| # 18 Barn built in 2003 | |
|
|
| This is a 26' by 32' 2 1/2 story barn that has a drive-in second floor, supported by heavy oak beams. | |
| # 19 Barn / House built in 2003 | |
|
|
| This is a 28' by 40' 2 story bank barn, that is actually a house, with a southern exposure of mostly glass. | |
| # 20 Barn / library built in 2003 | |
|
|
| This is a private library 18' by 32' including the 8' of porch (little school house look). | |
| # 21 Barn built in 2004 | |
|
|
| This barn is 24' by 30' 1 1/2 stories with cedar siding and a metal roof. | |
| # 22 Barn built in 2005 | |
|
|
| This barn is 18' by 24' 1 1/2 stories with cedar siding and a metal roof. The roof has SIP panels and the upstairs is used as a studio. | |
| # 30 Barn built in 2005 | |
|
|
| This is the completed frame of a 30' by 48' two story barn. Click on the picture for more shots | This is the same barn, completed. |
|
# 31 Barn / studio built in 2006 |
|
 |
 |
| This is the finished frame, the barn, is 24' by 44' 1 1/2 stories. it is a 4 bent structure. one bent is at 24' clear truss, leaving a 24' by 32' clear span room. | This is the completed barn, with cedar siding and a metal roof. The roof has SIP panels for insulation. |
|
# 32 Barn built in 2006 |
|
 |
 |

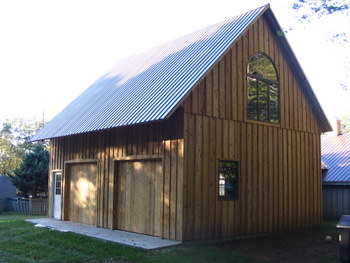

| This is the finished frame, the barn, is 24' by 30' 1 1/2 stories. It is a 3 bent structure. There are no internal posts upstairs. The roof is common rafters over purlins. | This is the completed barn, with cedar board & baton siding and a metal roof. The garage doors are over-head type, sheathed in vertical cedar. |
|
# 33 Barn / addition built in 2006 |
|
 |
 |

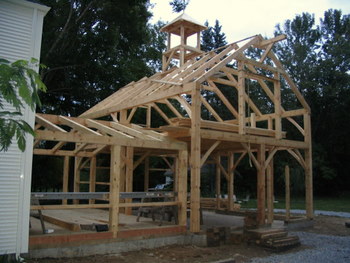

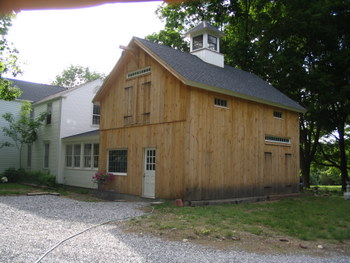

| This frame is an addition, it is 20' by 28' 1 1/2 stories. and a 15' by 20' con. The main section is a 3 bent structure. The mid bent is a clear span. The roof is common rafters, and it has a timber framed cupola. | This is the completed barn / addition, with pine siding and a Arct. shingle roof. The roof has SIP panels for insulation. |
|
# 36 Barn / boat house built in 2007 |
|
 |
 |
| This is the finished frame, the barn, is 16' by 24'. It is a 3 bent structure. in this case the bents followed the ridge. | This is the completed barn, with pine siding and a cedar shingle roof. |
|
# 38 Barn / Studio built in 2007 |
|
.jpg) |
 |

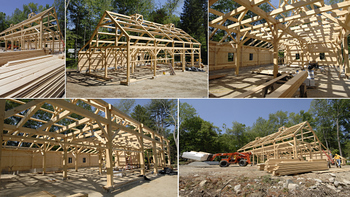

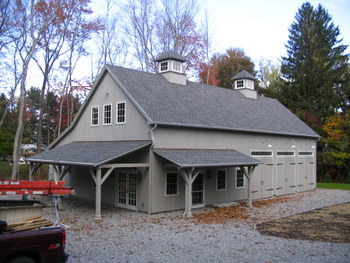

| These are pictures of the completed frame of a 38' by 60' story and a half barn / studio. It is a 5 bent frame with a shed off the back. Click on the picture to see a time-lapse video of the raising. | This is the same barn, completed. the walls and roof have SIP panels, cedar siding and Arct. shingle roof. plus the 2 porches were timber framed as well. |
|
# 39 The Hay Barn built in 2007 |
|
 |
 |

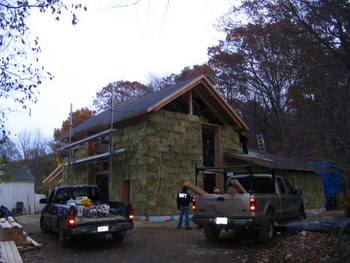

| This is the finished frame, the barn, is 20' by 30' 1 1/2 stories. with a 17' by 18' wing, and a 12' shed roof The main section is a 4 bent structure. | This green building has hay bale walls and SIP's on the roof. The bales will be covered in plaster and metal roofing applied over the SIP's on the roof. |
|
# 40 built in 2007 |
|
 |
 |
| This frame is an addition, it is 26' by 27' one story with a loft. It is a 4 bent structure. The roof is common rafters with a structural ridge. note the curved braces. | Here is the finished addition on the house. In the background you can also see the Timber Framed barn I had built them back in 2002 (# 15 above) |
# 41 built in 2008 |
|
 |
 |
| This frame is an addition, it is 24' by 28' two story. It is a 3 bent structure. The roof is common rafters. The first level is a walk-out basement. | |
# 42 built in 2008 |
|
 |
 |
| This frame is a horse barn, it is 28' by 36' 1 1/2 stories. It is a 4 bent structure. The roof is common rafters resting on plates and purlins. This style frame is great for hand raisings. | Here is the finished barn |
# 43 built in 2008 |
|
 |
 |

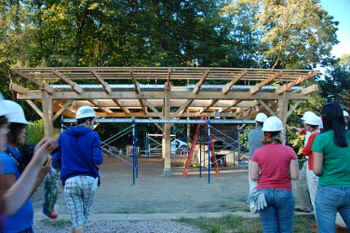

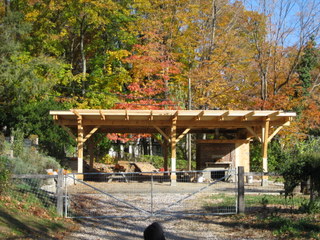

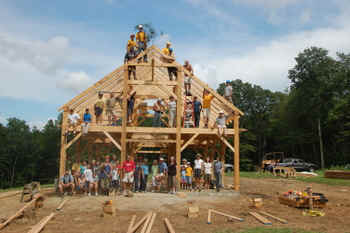

| This frame is a Pavilion at Yale University, it stands on 6 posts, and its roof overhangs to 30' by 39'. It has 2 bents 38' long and 20' apart. The frame was hand raised by students and friends. | This the finished Pavilion |
# 45 built in 2009 |
|
 |
 |

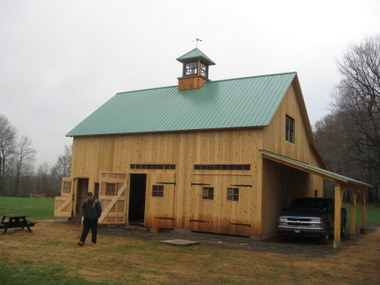

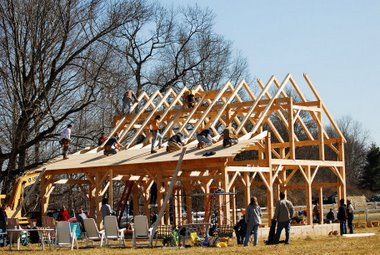

| This Barn is 36' by 36' 1 1/2 stories plus a 10' by 24' shed roof on one side. The Timber frame hand raising only takes one day and the roof was completed that day too! | This is the finished barn, with cedar siding, metal roof, and custom made Timber framed cupola |
